Wafer Sorter   |    300mm   |    8" Non-SMIF Model - TWS8NT12  |    8" Non-SMIF Model - TWS8NT14    |
 300mm Wafer Sorter

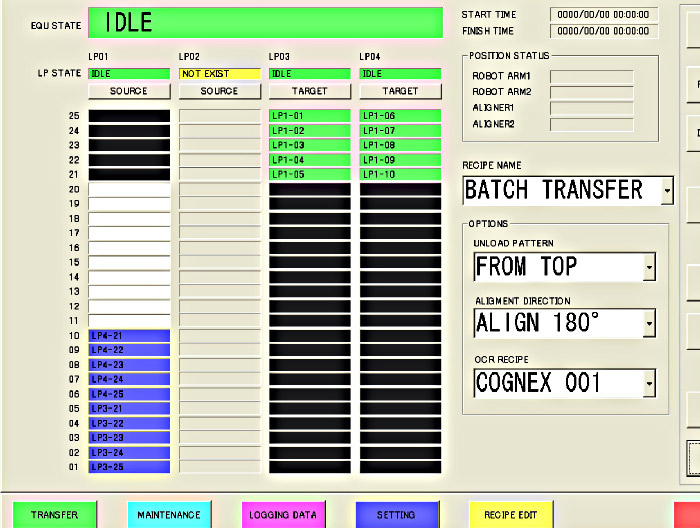

Visual Diagram Touch Panel
Enlarge
 Specifications
Model
 TWS12NQ24
Dimension (WxDxH)
1550 x 1850 x 1800
OCR
 COGNEX
Touch Panel
15"
Find Notch
Yes
OCR Wafer Identification System
Optional
LCD or CRT Monitor
Yes
Bar Code Reader
Optional
Wafer Mapping Function in Cassette
Yes
SEC II/ GEM
Optional
UPS
 Yes
Throughput W/O, A Up to 800 Pcs/hour
Throughput WT/O, A Up to 900 Pcs/hour
MTBF 8000/hrs
MTTR 2 Hour
Wafer Breakage Rate 1/300000 Wfs
top
 8" NON-SMIF Wafer Sorter - TWS8NT12
Visual Drawing
 Specifications
Model
 TWS8NT12
Dimension (WxDxH)
700 x 995 x 1550
OCR
 COGNEX
Touch Panel
15"
Find Notch/Flat Function
Yes
OCR Wafer Identification System
Optional
LCD or CRT Monitor
Yes
Bar Code Reader
Optional
Wafer Mapping Function in Cassette
Yes
SEC II/ GEM
Optional
UPS
 Yes
Throughput W/O, A Up to 320 Pcs/hour
Throughput WT/O, A Up to 500 Pcs/hour
MTBF 8000/hrs
MTTR 2 Hour
Wafer Breakage Rate 1/300000 Wfs
top
 8" NON-SMIF Wafer Sorter - TWS8NT14
Visual Drawing
 Specifications
Model
 TWS8NT14
Dimension (WxDxH)
1160 x 995 x 1550
OCR
 COGNEX
Touch Panel
15"
Find Notch/Flat Function
Yes
OCR Wafer Identification System
Optional
LCD or CRT Monitor
Yes
Bar Code Reader
Optional
Wafer Mapping Function in Cassette
Yes
SEC II/ GEM
Optional
UPS
 Yes
Throughput W/O, A Up to 320 Pcs/hour
Throughput WT/O, A Up to 500 Pcs/hour
MTBF 8000/hrs
MTTR 2 Hour
Wafer Breakage Rate 1/300000 Wfs
